EARCANAL NURSING INSTRUMENT FOR PET PORTABLE
TECHNICALFIELD
Thepresent disclosure relates to a pet care equipment. In particular,the present disclosure relates to a portable pet auditory meatus careinstrument for sterilizing and removing ear mites through ozone.
BACKGROUNDOF THE PRODUCT
Earmites, also known as sarcoptes scabiei or otodectes cynotis, areparasites commonly found in the auditory meatus of cats and dogs. Earmites have a short life cycle of 18-28 days. The eggs of ear mitesbecome larvae after 4 days. The larvae become adult worms afterpassing through the stages of nymphs and nymphs. Adult worms canfertilize and lay eggs. And the adult ear mites have strong vitalityand can survive for 5 to 17 days after leaving the host. So, earmites are highly contagious between cats and dogs. There can bethousands of ear mites in a cat's auditory meatus. Ear mites in dogauditory meatus are relatively small. Once cats and dogs are infectedwith ear mites, it is extremely difficult to completely cure.Nowadays, with the improvement of living environment and theimprovement of civilization, pets have gradually become the importantmember of many families. The common pets include mostly cats and dogsdue to the history of domestication and the degree of domestication.The characteristics of the physiological structure of the auditorymeatus of cats and dogs make the atmosphere is high humidity,insufficient light, and poor ventilation in the auditory meatus.Then, the atmosphere provides suitable breeding conditions for earmites. Ear mites cause unpleasant odors, itch, and severe cases, evencause inflammation and lead to abscess and ulcers. Many pet ownerswithout keeping experience think that pets are smelly, which may leadto over-treatment or abandonment of pets.

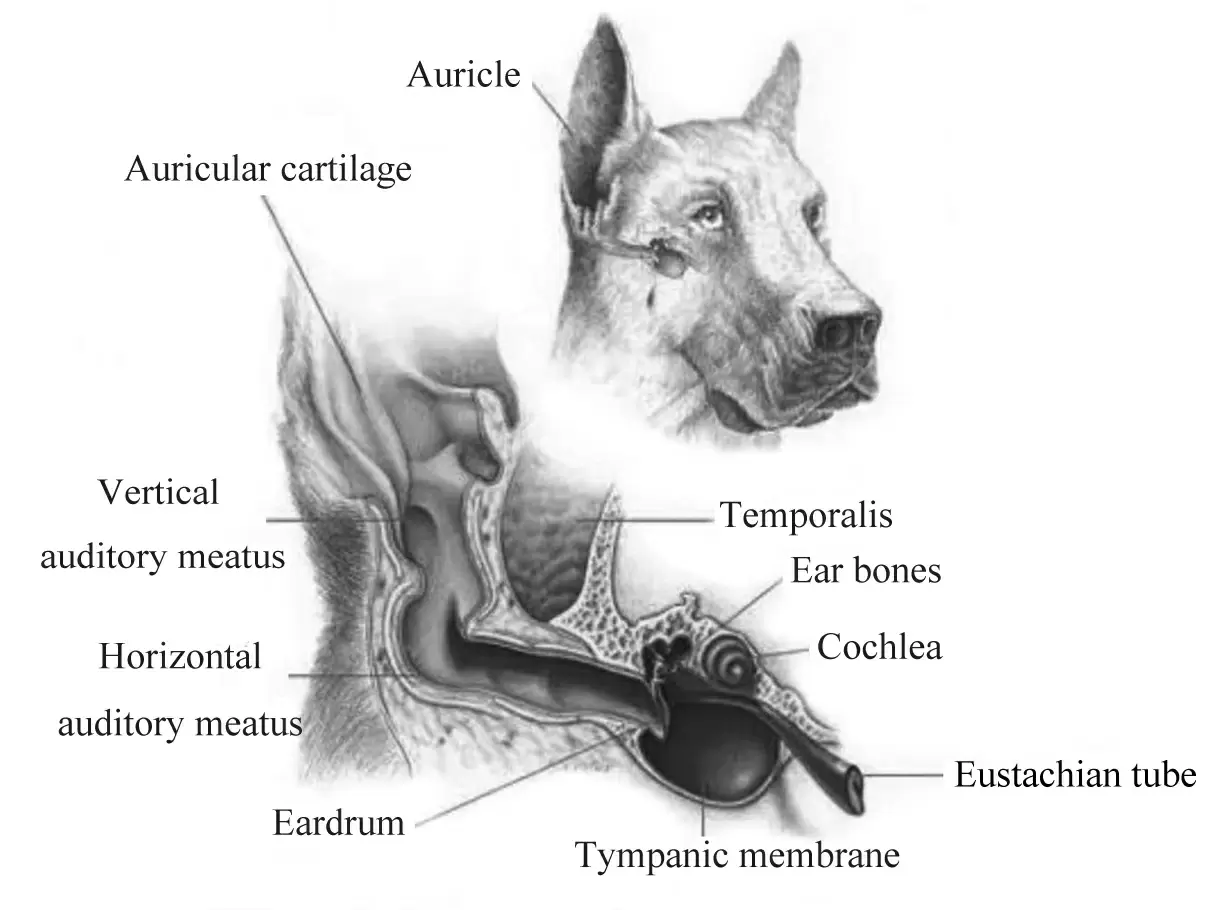

Themost common way to treat pet ear mites is medication. Most of themedicines commercially available for treating ear mites are externalmedicines, including Acarexx containing ivermectin, Milbemitecontaining moxidectin, Tresaderm containing thiabendazole, Revolutioncontaining selamectin, and Advocate containing moxidectin. A Chinesepatent has disclosed a pharmaceutical composition for treating earmites. The pharmaceutical composition is a transparent ear drops,containing the raw materials in weight percentage: 0.1%-1.0% ofmilbeoxime, 19.0%-92.5% of solvent, 2.0%-50.0% of solubilizer, and2.0%-30.0% of stabilizer. The pharmaceutical composition can bedripped into the auditory meatus of cats and dogs, and has a directeffect on ear mites, and has a strong curative effect on moderate andsevere infection by ear mites and be safety. But, as shown in FIG.1,the auditory meatus of cats and dogs comprises the vertical auditorymeatus and the horizontal auditory meatus. The vertical auditorymeatus is connected to the auricle, and the horizontal auditorymeatus is connected to the tympanic membrane, eardrum, ear bones,cochlea, and eustachian tube. The angle between the vertical auditorymeatus and the horizontal auditory meatus is close to 90°. After thetreatment drug is instilled into the auditory meatus, due to its owntension, it only stays in the vertical auditory meatus, and cannotenter the horizontal auditory meatus through the 90° angle, so theeffect of treating ear mites is greatly reduced, and the treatmenttime is long and incomplete. Even with a cotton swab as an aid, theswab cannot be bent and inserted into the horizontal auditory meatus.
SUMMARY
Tosolve the above-mentioned deficiencies in prior art, the presentdisclosure provides a portable pet auditory meatus care device thatuses ozone to sterilize and remove mites. The device can completelydisinfect the auditory meatus of cats and dogs and other pets so asto prevent and treat ear mites.
Inthe present disclosure, the technical problems are solved through thefollowing technical solutions.
Aportable pet auditory meatus care device for sterilizing and removingear mites through ozone, in which the device comprises:
ahandle-shaped housing case, one end of which is provided with aconnection port;
anozzle having an output port, which is connected with the connectionport for abutting against the auditory meatus, and the output port iscommunicated with the interior of the auditory meatus when the nozzleis abutted against the opening of the auditory meatus;
anozone generator generating ozone gas, which is communicated with theoutput port of the nozzle;
adrive board for driving the ozone generator to generate ozone gaswhich is electrically connected with the ozone generator; and
abattery for providing power supply for the drive board which iselectrically connected with the drive board; and
theozone generator, the drive board and the battery are all disposed inthe housing case.
Insome examples, the battery is connected with the ozone generator by aswitch, and the housing case is provided with a button correspondingto the switch for controlling the switch to be turned on or off.
Insome examples, the nozzle is balloon-shaped and made of silica gel.
Insome examples, the nozzle is connected with the housing case in adetachable manner.
Insome examples, the axis of the housing case has an included angle of1-90° relative to the axis of the nozzle.
Insome examples, the device also comprises a power unit disposed in thehousing case and communicating with the ozone generator fordelivering the ozone gas generated by the ozone generator to thenozzle.
Insome examples, the battery is connected with the power unit throughthe switch.
Insome examples, the power unit is a micro fan, or a micro air pump.
Insome examples, the power unit is integrally or separately connectedwith the ozone generator.
Insome examples, the power unit is integrally connected with the ozonegenerator, the device further comprises an inner shell disposed inthe housing case, which comprises:
afirst cavity in which the power unit is disposed;
asecond cavity in which the ozone generator is disposed;
anintake disposed between the first cavity and the inner cavity of thehousing case, which is provided with a first one-way valve forpassing air from the first cavity to the second cavity only;
anexhaust which is disposed between the second cavity and the outputport of the nozzle; and
aninterface disposed between the first cavity and the second cavity,which is provided with a second one-way valve for passing air fromthe first cavity to the second cavity only.
Thedevice generates ozone by means of ozone generator, and releasesozone into the auditory meatus of cats or dogs and other pets throughthe output port on the nozzle. In this way, a complete disinfectionof the auditory meatus is achieved. Ozone can diffuse to all cornersof the complex auditory meatus of pets due to the indeterminate formand high fluidity. Even in the auditory meatus with a corner close to90°, ozone can also enter through the corner, then enter thehorizontal auditory meatus behind the corner to completely disinfect.The portable pet auditory meatus care device greatly improves theeffect of treating ear mites, and shortens the treatment time, andimproves the treatment efficiency, and has no drug residues in thepets’ auditory meatus after treatment with high security.
TECHNICAL
Theportable pet ear mite care device of this patent product is used tosterilize and remove mites from the ear canal of pets through ozone(English name: Ozone), which can comprehensively disinfection andsterilization the ear canal of cats, dogs and other mammals toprevent, disinfection and sterilization Malassezia, remove mites anddeodorize.
Ozoneis superior to chemical disinfection and ultraviolet radiation inkilling mites. It is fast in killing mites and is usually better inhigh humidity. After ozone sterilization, it will decompose intooxygen by itself, which generally will not produce residual pollutionand is green.
ProductParameters

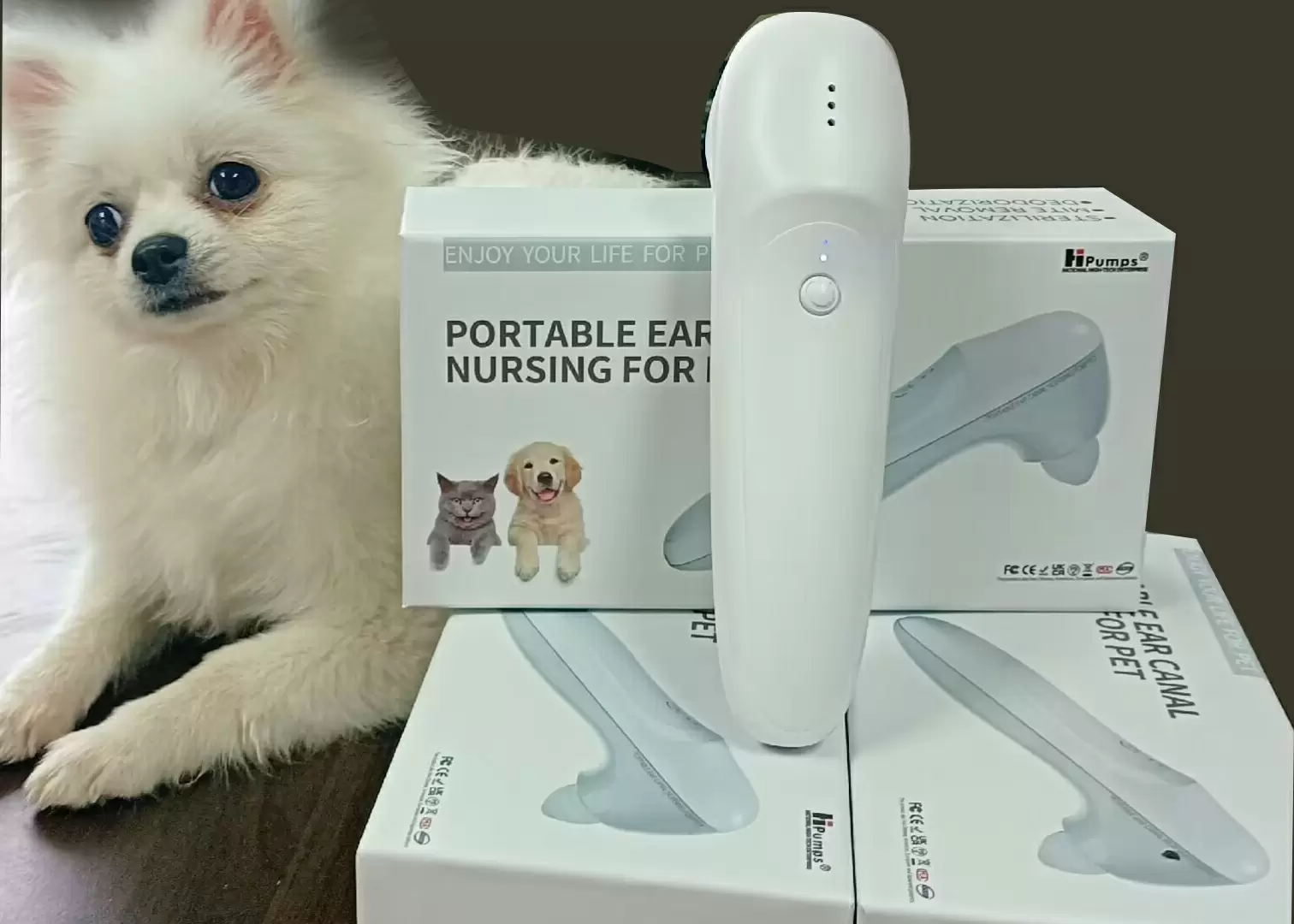

ItemNo.:HiEM-001
Changewatt: DC5V
Workingvoltage: 3.7V (18650 Li battery)
Ratedpower: 3W
Ozonegeneration: 50mg/H
Size:188*50*85mm

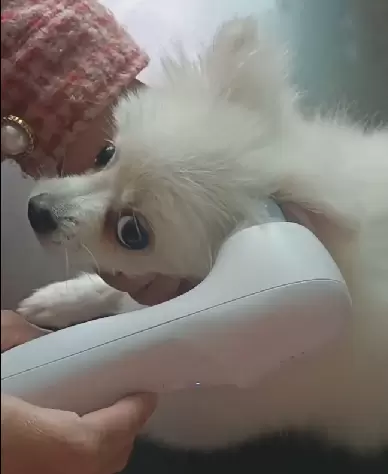

Thisproduct is light, portable and convenient to use. The cost ofmaintenance and treatment is low, safe, reliable and pollution-free.Utilizing the oxidation characteristics of Ozone, ozone gas is inputinto the ear canal of cats, dogs and other mammals through the gasand the output port on the contact nozzle, and the ear canal iscomprehensively disinfection and sterilization. Because of its nonfixed form and high mobility, ozone gas can freely spread to allcorners of the ear canal in the complex ear canal of mammals forcomprehensive disinfection and sterilization, even when facing theear canal of cats and dogs with a 90 ° corner, It can still gothrough the corner and enter the horizontal ear canal behind thecorner for comprehensive disinfection and sterilization, whichgreatly improves the effect of treating ear mites, shortens thetreatment time, improves the treatment efficiency, and there is nodrug residue in the ear canal, with high safety. Ozone (O3) is astrong oxidizing gas, which has a fast and efficient disinfection andsterilization effect on bacteria, viruses, fungi and even smallparasites and mites. disinfection and sterilization effect is betterand odor can be removed in high humidity environment. It belongs tophysical therapy and does not contain hormones. It can be decomposedinto oxygen after use.
Whenusing this product, each treatment lasts for 3 minutes, three times aday, and 6 days is a course of treatment. This product is set withtwo levels and has the function of automatic timing. Control theamount of ozone gas injected into the ear canal to maintain about0.02 ml, and inject it for 1 minute to meet the acaricidalconcentration of less than 5 cubic centimeters in the ear canal ofcats, dogs, etc. Use twice a week in daily care can not only preventthe breeding of ear mites, but also remove the odor of ear canal. Inhumid weather, it is also a high incidence period of ear mites inmammals. You can appropriately increase the number of uses. Formammals with ear mites, drug treatment will also shorten and improvethe treatment time and effect.

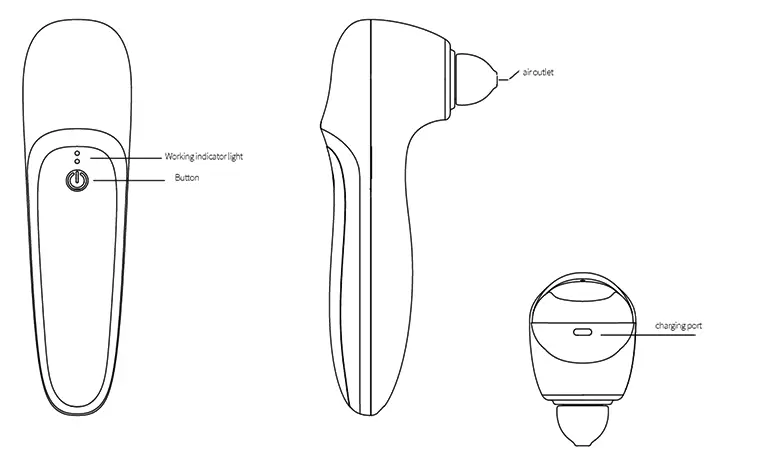

1.In the shutdown state, press the button to turn it on and enter thehealth care mode, and itwill automatically shut down after 1min of work.
2.In the shutdown state, press and hold the button for 2S to turn onthe machine to enter theenhanced nursing mode, and it will automatically shut down afterworking for 3 minutes.
3.In the working state, press the button to shut down.
4.The indicator light is always on when the machine is turned on.
5.Description of working indicator lights:Whenthe battery power is low, the blue light flashes 5 times and thenautomatically shuts down, pleasecharge it in time;Red light breathing light (3 seconds) whencharging, red light is always on whenfully charged.
Warm:
1.Please charge this product before using it;
2.Do not place this product in a high temperature or humid environment,do not expose it to the sunor wash it with water;
3.It is strictly forbidden to put this product into water or fire, norto throw it away at will, in order toavoid fire, explosion or product damage;
4.Ambient temperature of this product: 10-40℃;storage temperature range: 10-45℃;
5.Please use regular chargers and charging cables, such as chargers anddata cables provided byregular mobile phone manufacturers. Using non-regular chargers andcharging cables may causeirreversible damage to the product;
6.It is forbidden for children to use it without adult supervision;
7.Please place this product out of the reach of children;
8.When not in use for a long time, please put this product in a specialbox, and charge and dischargeit once every 3 months to prolong the service life of this product.Long-term storage withoutcharging may lead to over-discharge of the built-in battery of theproduct, making it impossibleto recharge.
9.Unauthorized disassembly is prohibited.
